TDN1 Dante Conference Microphone

TDN1 Dante Conference Microphone

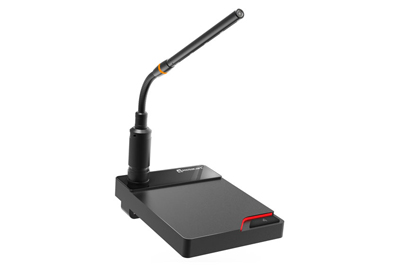

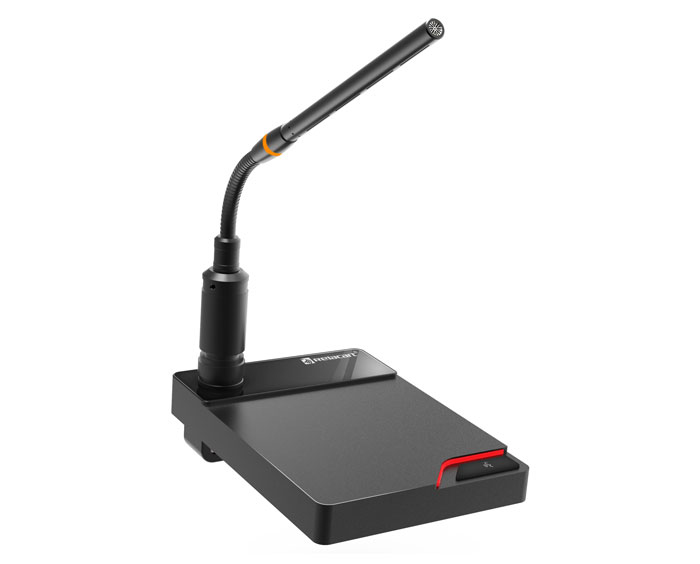

TDN1 is a Dante supported desk stand capable of being used with any phantom powered condenser gooseneck microphone with an XLRM output connector such as a Relacart ES-910 microphone. The desk stand is designed for surface-mount applications such as high-quality sound reinforcement, conferences, distance learning and other sound pickup applications.

Key Features:
  • The LED indicator light is red/green. In local mode, the switch can mute or unmute the microphone, and can be set to toggle between a live and mute mode (toggle on/off). It can also be set for press to talk or press to mute.
  • Users can use Dante control software provided by Audinate. Software is available at www.aduinate.com, where instructions for Dante router control and software are also found.
  • Optional Software: Relacart’s Dante conference microphone management control software RDM1.0 can directly set microphone input gain, low cut filter, working mode, phantom power, and determine the audio gain level, as well as distortion visuals.
Technical Parameters:
  • Frequency Response: 20-20,000Hz
  • Low Frequency Rolloff: 150 Hz, 18 dB/octave
  • Gain Adjustment: 6 levels of adjustable gain
  • Input Impedance: 2.2 kΩ
  • Max. Sound Input Level: 0dBu @ +20 dB gain
  • S/N: 65dB, 1 kHz at 1 Pa
  • Power Supply: PoE IEEE802.3af standard
  • Power Consumption: 2.3W
  • Phantom Power Supply: 48V DC
  • Weight: 720g
  • Output Connector: standard Ethernet socket
  • DANTE network: RJ45 output connector, CAT5 or CAT6 cables above 100 Mbps
Other Products

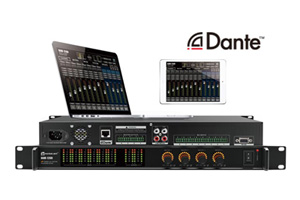

    1. DAM-128D Dante Automatic Audio Mixer
