True Diversity is a common wireless microphone term. It refers to a more advanced form of a diversity receiver as a true diversity system contains a radio receiver that actually has two independent receiver sections, each with its own antenna (rather than a single receiver with one or two antennas), to pick up the transmission from a wireless microphone.

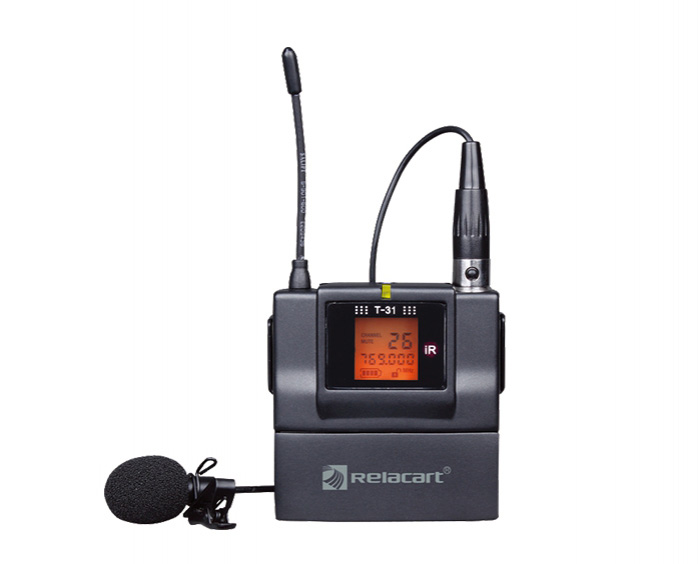

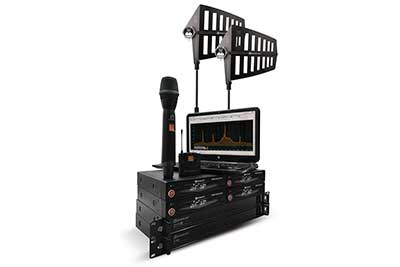

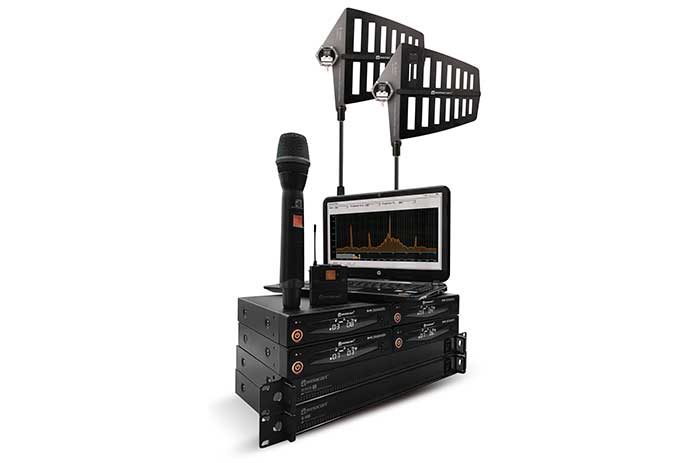

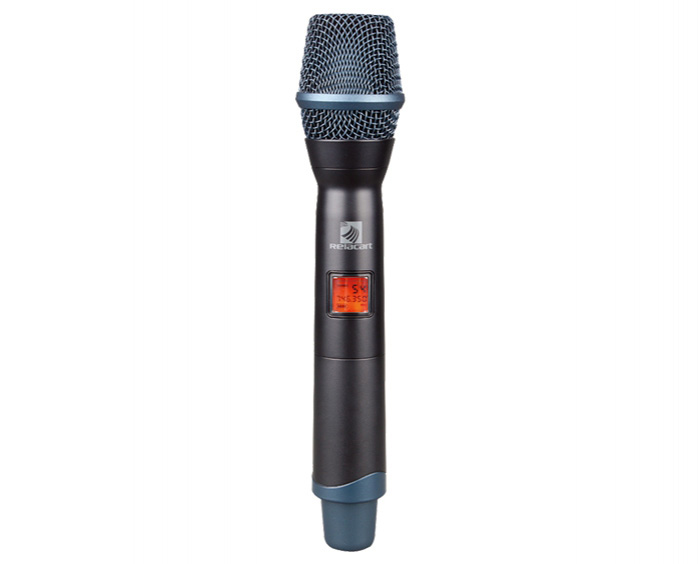

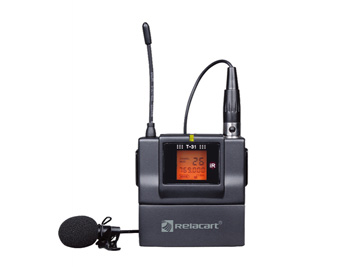

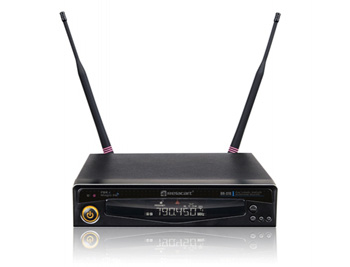

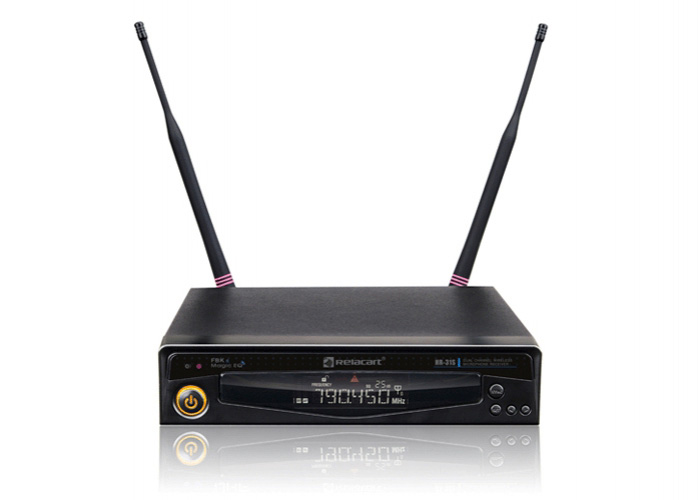

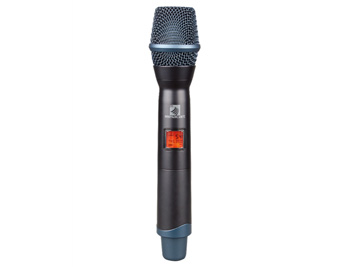

The HR-31S UHF single channel true diversity wireless mic system consists of a handheld vocal microphone, true diversity rack mountable receiver (includes 2 detachable antennas), body-pack transmitter, and you can selective assemble wireless digital software for real time monitoring. It can automatically determine the correct frequency for setup, minimize errors and increase mic-to-mic sound continuity. The HR-31S UHF true diversity wireless mic system is intended for large-scaled stage performances. It has 1280 selectable UHF frequencies and true diversity reception, and guarantees incredible audio quality and reliable performance for artists, broadcasters and other demanding audio environments.
| Main Frame Size | EIA standard ½ U |
| Receiving Channel | Single Channel |
| Frequency Reliability | ± 0.0005% |
| Carrier Frequency Range | UHF554– 936MHz |
| Modulation | FM |
| Operating Distance | Typical 80m (in open space) |
| Oscillation | PLL synthesized |
| T.H.D | ≤1%@10kHz with deviation of 1kHz |
| Sensitivity | S/N>60dB @5dBμV input & deviation of 25kHz |
| Bandwidth | 32MHz |
| Max. Deviation | ±45KHz |
| Overall S/N | ＞102dB |
| Overall T.H.D. | ＜0.5% @ 1KHz |
| Frequency Response | 53Hz～18KHz ± 3dB |
| Power Supply | DC-12V / 1A |
| Weight | Approximately 1.1kg |
| Carrier Frequency Range | UHF 554 – 936MHz |
| Oscillation | PLL synthesized |
| Harmonic Radiation | < 20dBm |
| Bandwidth | 32MHz |
| Max. Deviation | ±45KHz |
| Capsule | Dynamic/condenser cardioid |
| RF Output Power | 10mW/40mW |
| Battery | AA×2 |
| Current Consumption | 100mA (Typical) |
| Battery Life | Approximately 10 hours |
| Dimension (mm) | 53(φ) × 256(L) |
| Weight | Approximately 312g (w/o battery) |
| Carrier Frequency Range | UHF 554 – 936MHz |
| Oscillation | PLL synthesized |
| Harmonic Radiation | < 50dBm |
| Bandwidth | 32MHz |
| Max. Deviation | ±45KHz |
| Input Connector | 4-pin mini XLR connector |
| RF Output Power | 10mW/40mW |
| Battery | AA× 1 |
| Current Consumption | 205mA (Typical) |
| Battery Life | Approximately 5 hours |
| Dimension (mm) | 66 (H) × 63 (W) × 20(D) |
| Weight | Approximately 85g (w/o battery) |
