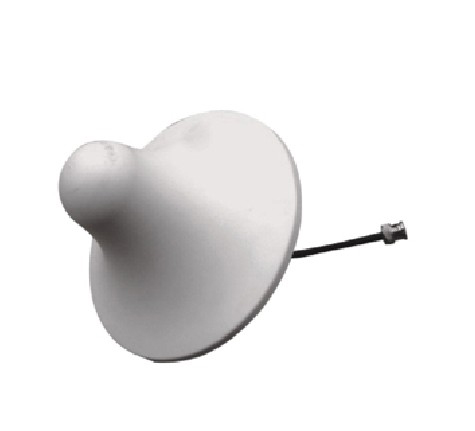

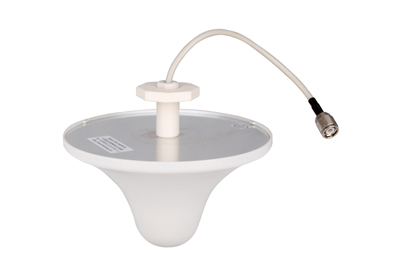

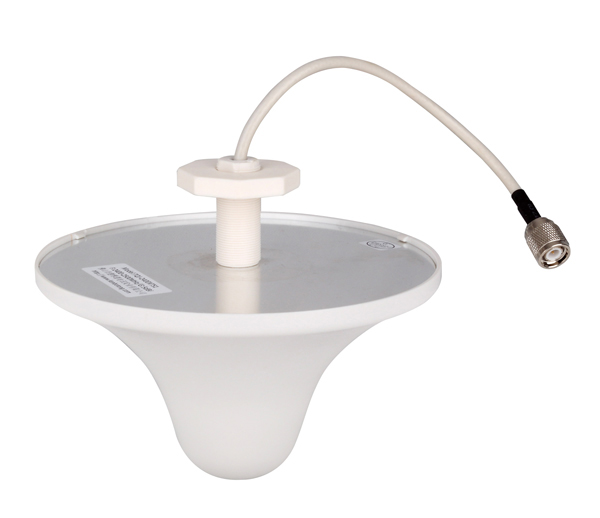

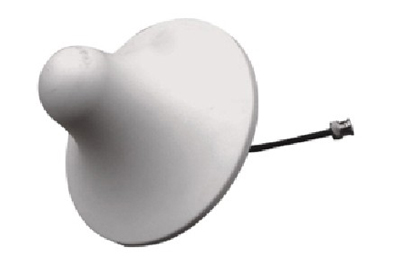

R-2.4C Ceiling Mount Antenna

R-2.4C Ceiling Mount antenna
R-2.4C Ceiling Mount antenna
Key Features:
  • High output gain, low voltage standing wave ratio.
  • Allows for flexible extension, no need for extra antenna if adding more conference units.
  • Ceiling mount with easy installation, does not affect the environment.
  • The antenna is connected with the central controller or signal amplifier using a TNC coaxial cable.
Technical Parameters:
  • Carrier Frequency Range: 2400--2500MHz
  • VSWR (voltage standing wave ratio)≦1.5
  • Input Impedance: 50Ω
  • Output Gain: 6dBi
  • Polarization: Vertical
  • Polar Pattern: ≧25dB
  • Horizontal Flap Width: 120°
  • Vertical Flap Width: 55°
  • Max. Output Power: 50W
  • Bandwidth: 100MHz
  • Connector: BNC
  • Dimension: 100mm (diameter)
  • Weight: Approximately 154g
