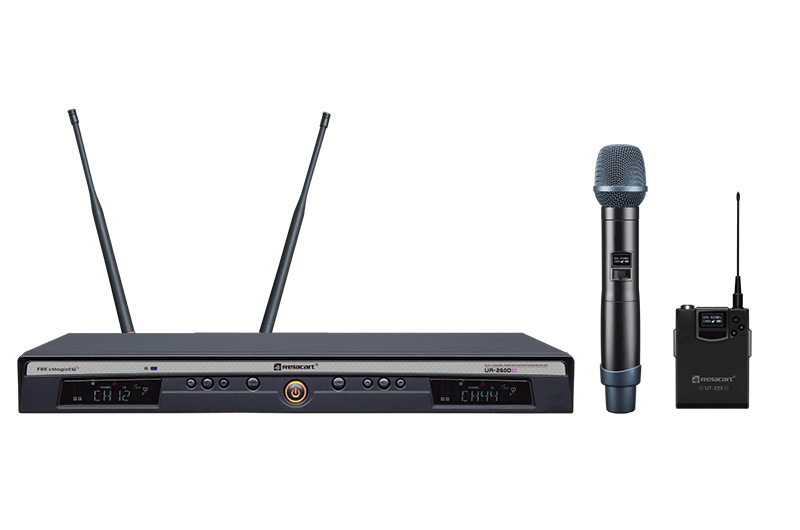

UR-260D Antenna Diversity Dual UHF Wireless Microphone System

UR-260D Antenna Diversity Dual UHF Wireless Microphone System

The UR-260D wireless microphone system is equipped with an outstanding dual-channel function and an intelligent EQ function with 9 different selectable sound effects, which can perfectly restore the audio signal and reach high fidelity sound results. This UR-260D series microphone system is suitable for large-scale stage performances, KTV, night clubs, music studios and more.

Key features:
  • Magic EQ function: Built in DSP (digital signal processing) with 9 selectable sound timbres. 7 of them are set modes and cover various international brands classic sound, and the other 2 are custom modes and you can set your preference sound directly using professional software.
  • The receiver can connect to PC using TCP/IP port for remote control, remote diagnosis and upgrades;
  • FBK function can effectively prevent howling automatically;
  • GND/LIFT port: obtained;
  • Volume control: Built in DSP volume control;
  • Transmitter bandwidth: 134MHz with four commonly used frequency bands;
  • Receiving method: CPU intelligent antenna diversity and auto frequency selection;

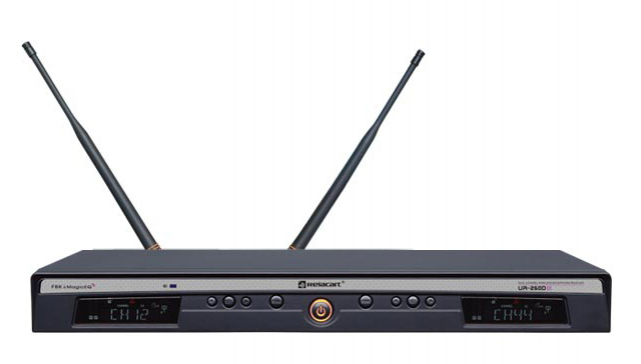

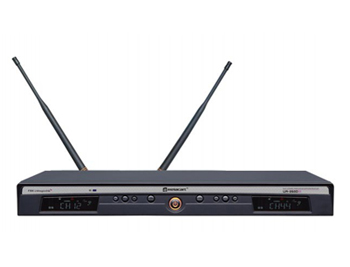

UR-260D Receiver
UR-260D Receiver

Main Frame Size: 1U EIA standard
Receiving Channels: Dual/Single channel
Frequency Reliability : ±0.005％

Main Frame Size 1U EIA standard
Receiving Channels Dual/Single channel
Frequency Reliability ±0.005％
Carrier Frequency Range UHF522MHz~936 MHz
Sampling Rate 96kHz 24-Bit
Default Audio Equalizer Simulate various capsule sounds
Modulation Mode FM
Oscillation PLL synthesized
Sensitivity S/N>60dB @5dBμV input & deviation of 25kHz
Bandwidth 32MHz
Max. Deviation ±45KHz
Overall S/N >100dB
Overall T.H.D. < 0.5％@1KHz
Frequency Response 45Hz-18KHz ±1dB
Working Distance Typical 100m (in open space)
Power Supply DC 12V / 12A
Dimension(mm) 410(W)x43(H)x206(D)
Output Sockets XLR balanced φ6.3mm phone jack unbalanced
Weight Approximately 2.0kg (w/o battery)

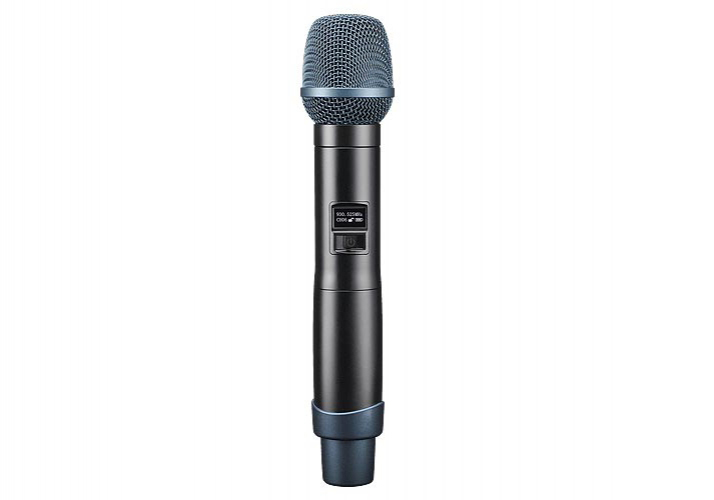

UH-222 Handheld Microphone
UH-222 Handheld Microphone

Carrier Frequency Range: 554MHz~936 MHz
Oscillation: PLL synthesized
Harmonic Radiation: < 50dBm

Carrier Frequency Range 554MHz~936 MHz
Oscillation PLL synthesized
Harmonic Radiation < 50dBm
Bandwidth Band AD: 134MHz (662 MHz~796 MHz)
Max. Deviation ±45KHz
Capsule Dynamic/condenser cardioid
RF Output Power 30mW/50mW
Battery AAx2
Current Consumption 120mA (Typical)
Battery Life Approximately 8 hours
Dimension (mm) 52(φ) x 255(L)
Weight Approximately 235g (w/o battery)

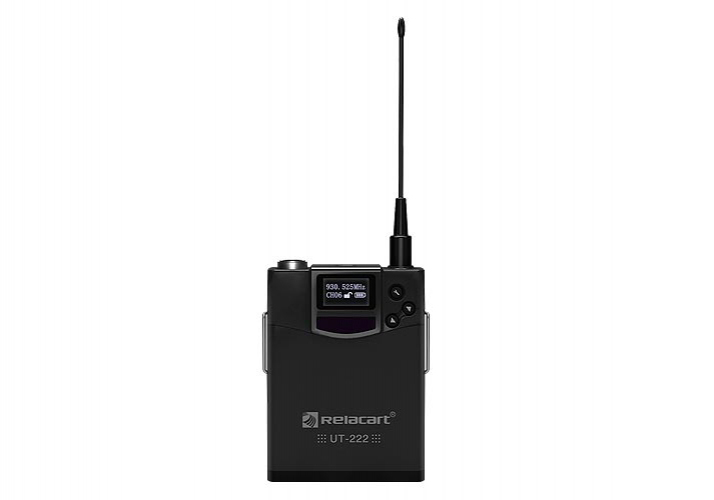

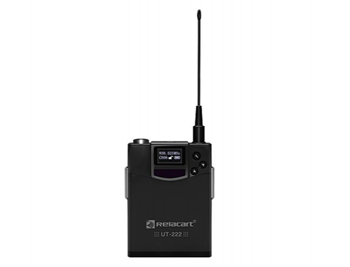

UT-222 Bodypack Transmitter
UT-222 Bodypack Transmitter

Carrier Frequency Range : 554MHz~936 MHz
Oscillation : PLL synthesized
Harmonic Radiation: < 50dBm

Carrier Frequency Range 554MHz~936 MHz
Oscillation PLL synthesized
Harmonic Radiation < 50dBm
Bandwidth Band AD: 134MHz (662 MHz~796 MHz)
Max. Deviation ±45KHz
Input Connector 4-pin mini XLR connector
RF Output Power 30mW/50mW
Battery AAx2
Current Consumption 120mA (Typical)
Battery Life Approximately 8 hours
Dimension (mm) 84(H) x66(W) x23(D)
Weight Approximately 155g (w/o battery)
