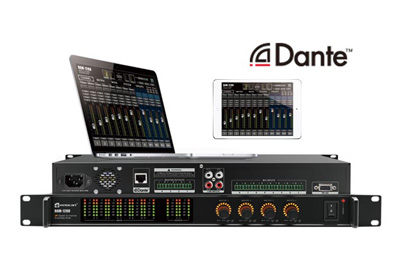

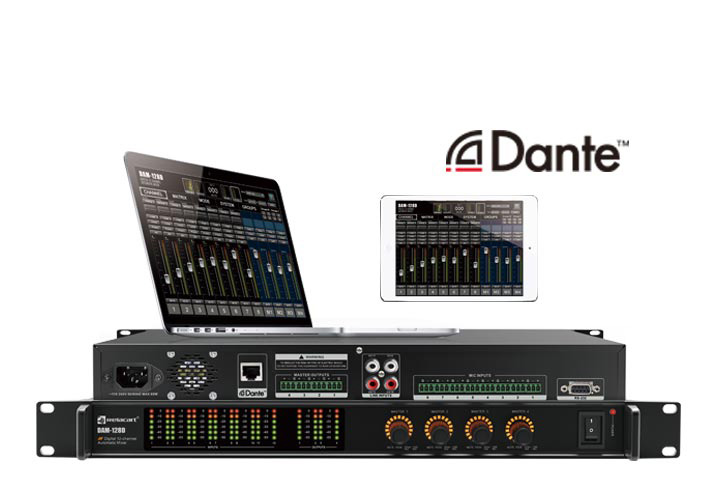

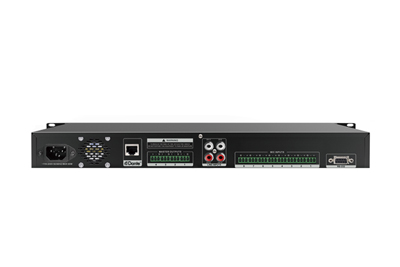

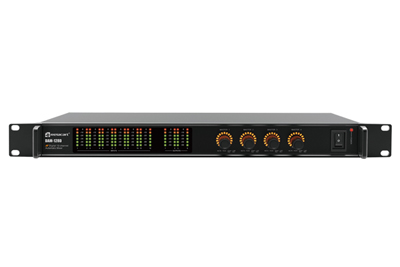

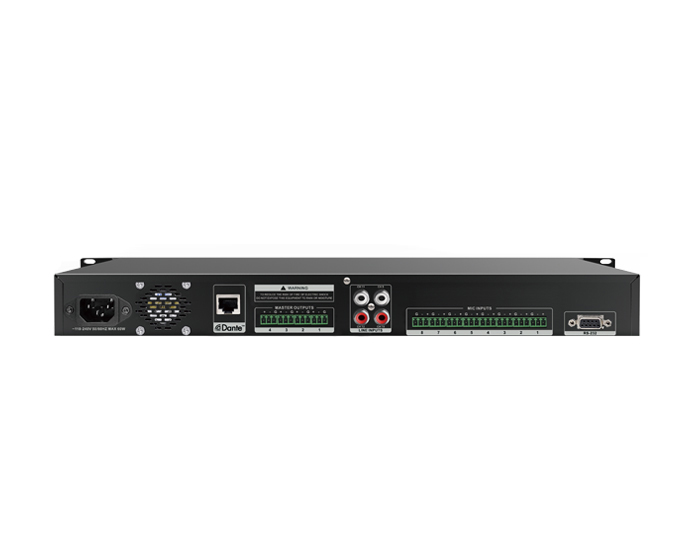

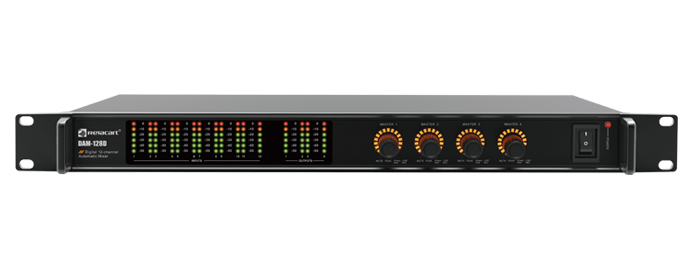

DAM-128D Dante Automatic Audio Mixer

DAM-128D Dante Automatic audio mixer
DAM-128D Dante Automatic audio mixer
DAM-128D Dante Automatic audio mixer
Key Features:
  • The 12-channel digital automatic mixer is the perfect combination of digital control technology and digital signal processing. It uses a high performance DSP as the core design, and carries out fully automatic work with no manual assistance.
  • The audio input channel will automatically open, and the sound gate action level automatically adjusts when the corresponding microphone activates. This design optimizes sound effects when multiple microphones are in use.
  • Easy to install, ready to use once correctly connected on site.
  • The microphones can be automatically controlled, as well as manually switched on or off according to specific usage situations.
  • The control panel is designed with a 12x8 matric for better visualization, and operates using an intelligent digital conference system. This automatic mixer system is applicable to locations with higher noise requirements, such as courts, business centers, conference centers, hotels, television stations, and more.
Technical Parameters:
Dynamic Range Analog-to-Analog : 100dB (A weighted)
Distortion (T.H.D.) < 0.05%
S/N 118dB
CMRR (common mode rejection ratio) >60 dB
Number of Input Channels MICx8, Linex4, Dantex4
Max. Input Level MIC input: +6 dBu Line input: +25dBu
Max. Gain MIC:+65db LINE:+20
Number of Output Channels Analogx4, Dantex4
Max, Output Level Line(+0): +21dbu MIC(-20): +1dbu
Dante Interface 4x4
AD/DA Converter 24bit, 48KHz
Internal Processing 40-bit, floating point DSP
DSP function Input/output equalization, limiter, feedback killer (anti-howling), matrix control, threshold control, high and low pass filter
Audio Frequency Response 20Hz-20kHz
Phantom Power Supply +48V/12mA
Network Interface 10/100 Mbps Ethernet, Dante digital audio
Main Frame Size 1U EIA standard
Dimension (mm) 410(W) x43(H) x 206(D)
Weight Approximately 2.7 Kg
Power Supply ~110V-240V 50/60Hz 60W
Working Temperature 0℃ ~ 40℃
Other Products

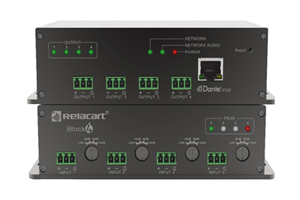

    1. Block 4 Dante Networked Audio Interface

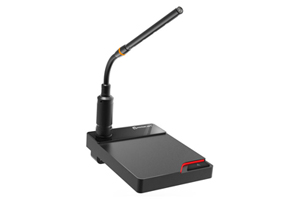

    1. TDN1 Dante Conference Microphone
    1. HR-31S UHF True Diversity wireless mic system

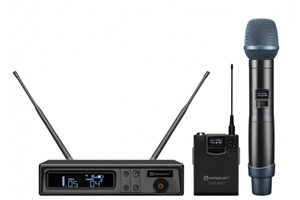

    1. UR-223S UHF True Diversity wireless mic system
