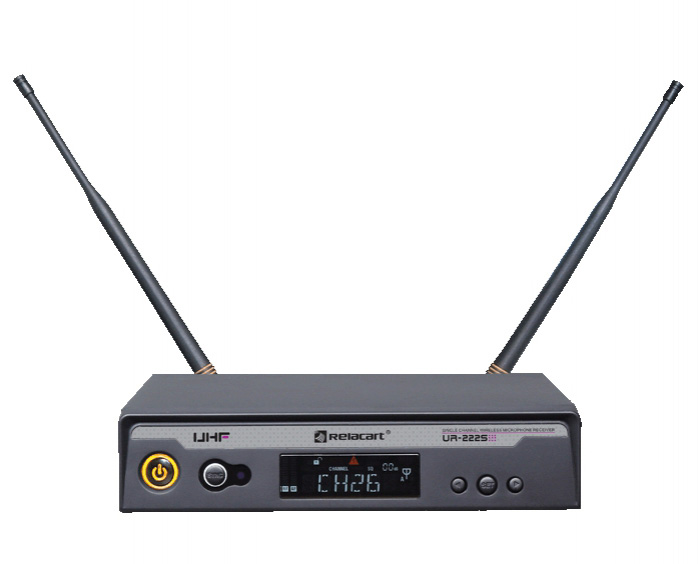

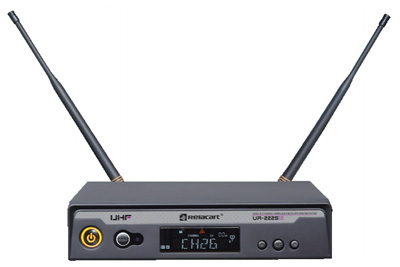

The UR-222S series antenna diversity wireless mic system is popular audio equipment due to its sophisticated appearance, stable performance, convenient operation, and attractive price. This series is suitable for places with specific requirements like nigh clubs, multi-function spaces, hotels, conference rooms, and small to medium music venues.
Main Frame Size : ½ U EIA standard
Receiving Channel : Single Channel
Frequency Reliability: ±0.005％
| Main Frame Size | ½ U EIA standard |
| Receiving Channel | Single Channel |
| Frequency Reliability | ±0.005％ |
| Carrier Frequency Range | 554MHz~936 MHz |
| Modulation Mode | FM |
| Oscillation | PLL synthesized |
| Sensitivity | S/N>60dB @5dBμV input & deviation of 25kHz |
| Bandwidth | 32MHz |
| Max. Deviation | ±45KHz |
| Overall S/N | S/N>105dB |
| Overall T.H.D. | < 0.7％@1kHz |
| Frequency Response | 80Hz-18KHz ±3dB |
| Working Distance | Typical 60m (in open space) |
| Power Supply | DC 12V / 12W |
| Dimension(mm) | 205(W)x43(H)x206(D) |
| Weight | Approximately 1.0kg (w/o battery) |
Carrier Frequency Range: 554MHz~936 MHz
Oscillation: PLL synthesized
Harmonic Radiation: < 45dBm
| Carrier Frequency Range | 554MHz~936 MHz |
| Oscillation | PLL synthesized |
| Harmonic Radiation | < 45dBm |
| Bandwidth | Band: HF 139MHz（797 MHz~936 MHZ) |
| Band: AD 134MHz（662 MHz~796 MHz） | |
| Band: EJ 97MHz（554MHz~651 MHz） | |
| Max. Deviation | ±45KHz |
| Capsule | Dynamic/condenser cardioid |
| RF Output Power | 10mW/40mW |
| Battery | AAx2 |
| Current Consumption | 110mA (Typical) |
| Battery Life | Approximately 11 hours |
| Dimension(mm) | 52(φ)x255(L) |
| Weight | Approximately 235g (w/o battery) |
Carrier Frequency Range: 554MHz~936 MHz
Oscillation: PLL synthesized
Harmonic Radiation: < 45dBm
| Carrier Frequency Range | 554MHz~936 MHz |
| Oscillation | PLL synthesized |
| Harmonic Radiation | < 45dBm |
| Bandwidth | Band: HF 139MHz (797 MHz~936 MHZ) |
| Band: AD 134MHz (662 MHz~796 MHz) | |
| Band: EJ 97MHz (554MHz~651 MHz) | |
| Max. Deviation | ±45KHz |
| Input Connector | 4-pin mini XLR connector |
| RF Output Power | 10mW/40mW |
| Battery | AAx2 |
| Current Consumption | 110mA (Typical) |
| Battery Life | Approximately 11 hours |
| Dimension (mm) | 84(H)x66(W)x23(D) |
| Weight | Approximately 155g (w/o battery) |
