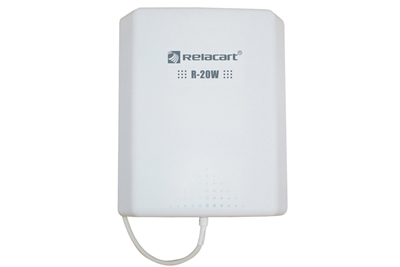

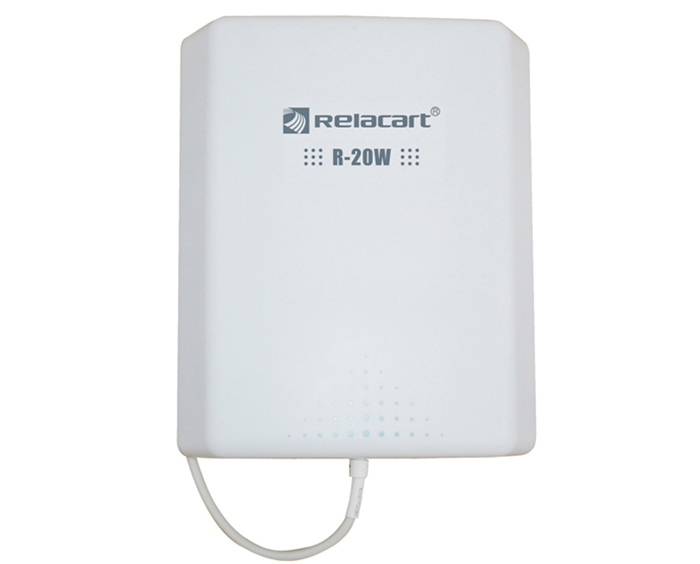

R-20W 2.4G Directional Panel Antenna
Key Features:
High output gain and low voltage standing wave ratio.
Allows for flexible extension, no need for extra antenna if adding more conference units.
Reliable and flexible performance, easy to install, can be fixed on the wall (using directional rack) or triangle bracket.
The antenna is connected with the central controller or signal amplifier using BNC coaxial cable.
Technical Parameters:
Carrier Frequency Range: 2400--2500MHz
VSWR (voltage standing wave ratio) ≦1.5
Input Impedance: 50Ω
Output Gain: 15dBi
Polarization: Vertical
Polar Pattern ≧25dB
Horizontal Flap Width: 120°
Vertical Flap Width: 55°
Max. Output Power: 150W
Bandwidth: 100MHz
Connector: BNC
Dimension: 210mmx180mmx44mm
Weight: Approximately 300g
