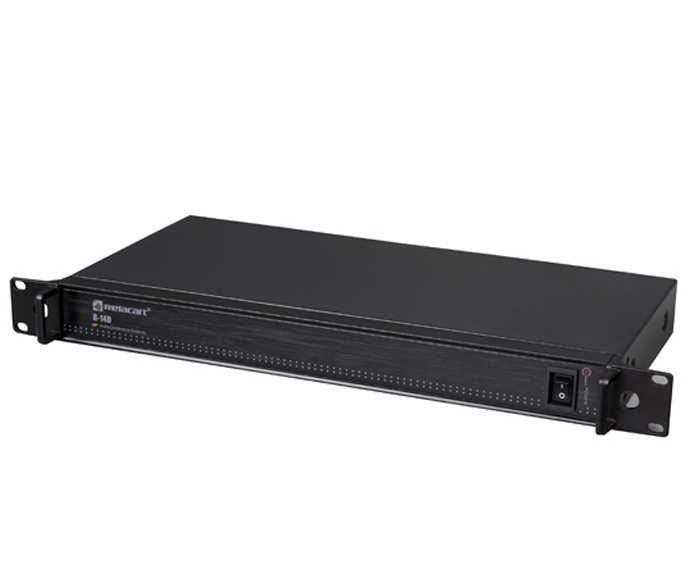

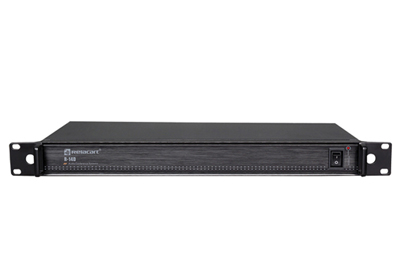

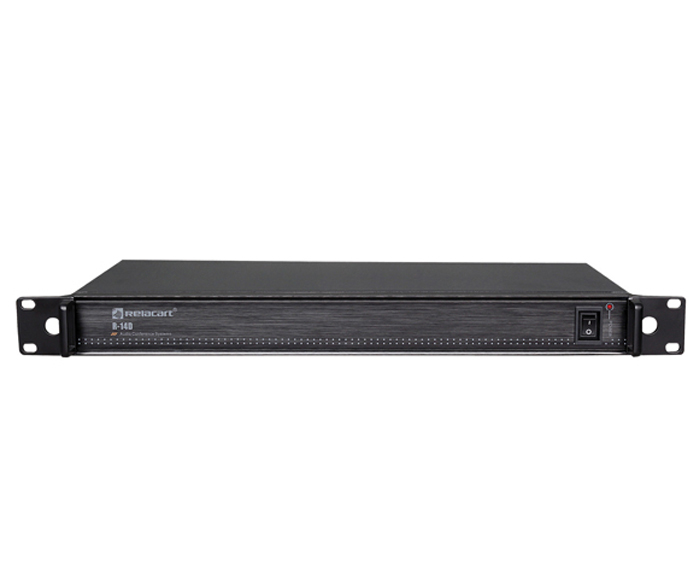

R-14D Antenna Dividers

The Relacart R-14D is a dual quadripartite antenna distribution system. The stable performance, compact structure and beautiful appearance design makes it suitable for any types of UHF wide bandwidth wireless systems and is compatible with EU and US new telecom regulations.

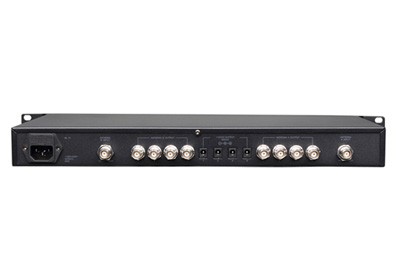

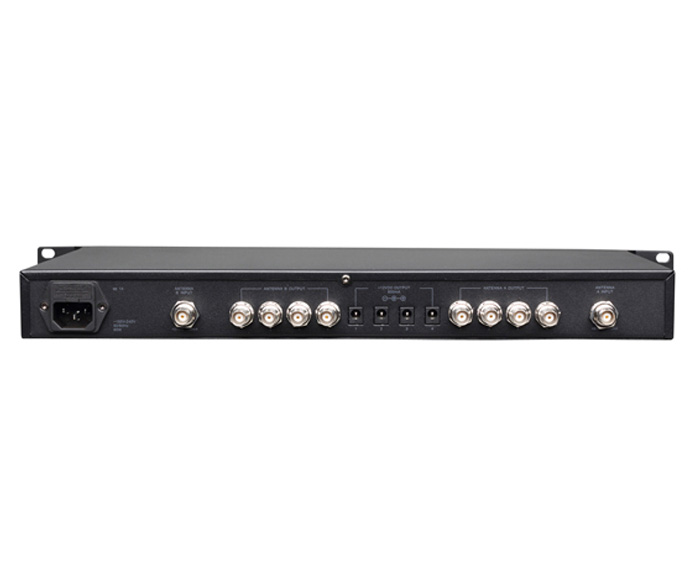

• R-14D provides 1-input, 4-output RF channels to connect with 2 to 4 Relacart wireless systems or other wireless systems by sharing a pair of antennas. This makes it easier for system assembly and higher efficiency.
• Precise circuit design; features of super low noise level and distortion, and well as perfect signal interference blockage when multiple channels are activating at the same time.
• The antenna input plug can directly connect with Relacart R-32AU Active directional antennas to ensure signal stability with far working distance.

• Carrier Frequency Range: 554 MHz --936MHz
• Gain of Output: 0dB，±1dB
• Input/output Impedance: 50Ω
• Antenna Power Supply: +8V DC/150mA
• DC Output: 12V DC/1A (MAX)*4 groups
• Power Supply: 100--240VAC, 50/60Hz 45W
• Dimension: 410mm (W) x43mm (H) x206mm (D)
• Weight: Approximately 2.5kg
