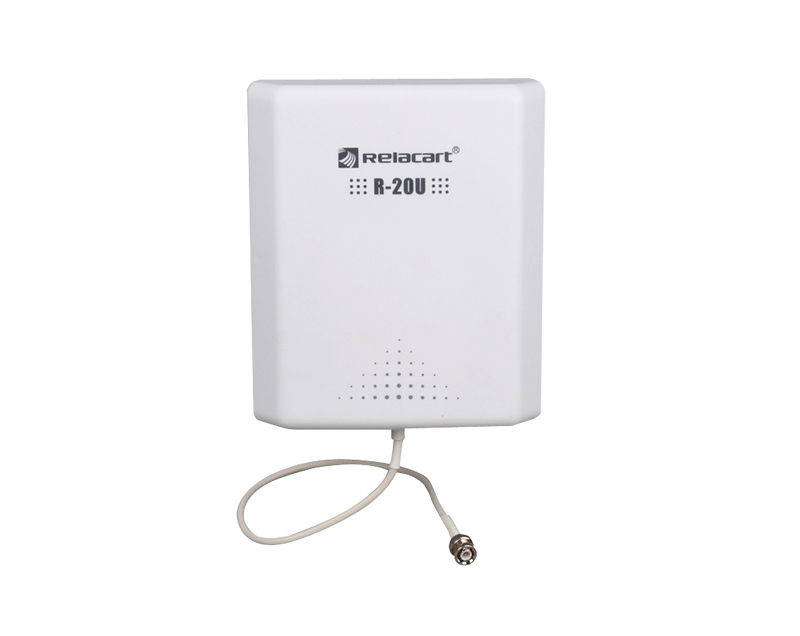

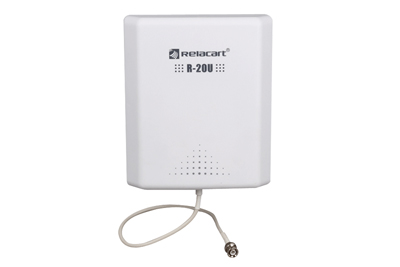

R-20U Wall Mount Panel Antenna

R-20U Wall Mount Panel Antenna


Key Features:
  • Operates over 600-800 MHz frequency range and compatible with EU and US new telecom regulations.
  • Compact structure and light weight for easier installation.
  • ABS cover for UV degradation for long and stable performance under demand operating conditions.
  • Can be fixed on the wall (using directional rack) or triangle bracket.
  • The antenna is connected with the central controller or signal amplifier using BNC coaxial cable.
Technical Parameters:
  • Carrier Frequency Range: 600--800MHz
  • VSWR (voltage standing wave ratio) ≦2.0
  • Input Impedance: 50Ω
  • Output Gain: 7dBi (Typical)
  • Polarization: Vertical
  • Polar Pattern: ≧25dB
  • Horizontal Flap Width: 80°
  • Vertical Flap Width: 60°
  • Max. Output Power: 50W
  • Bandwidth: 200MHz
  • Connector: BNC
  • Dimension: 210mmx180mmx44mm
  • Weight: Approximately 300g
