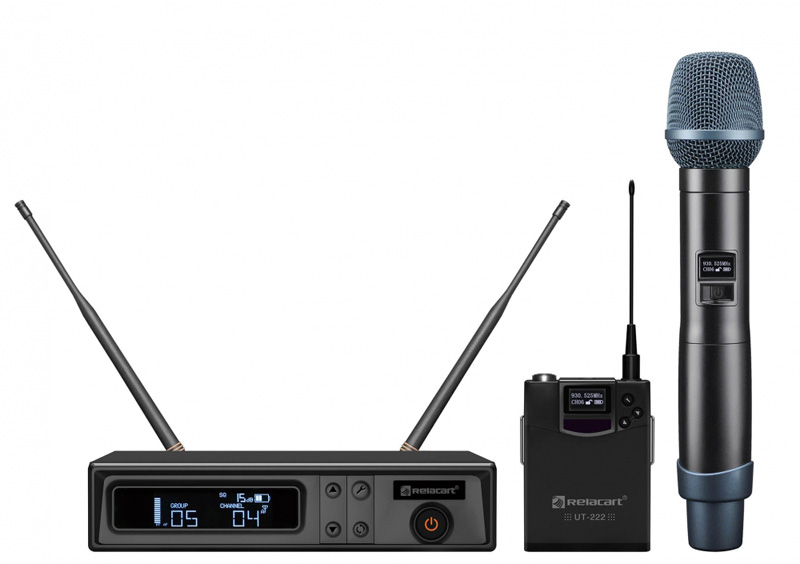

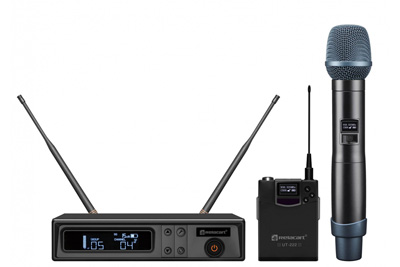

UR-223S UHF True Diversity wireless mic system

UR-223S UHF True Diversity wireless mic system

The UR-223Sseries wireless mic system adopts a true diversity receiving method to ensure stable performance, convenient operation and superior professional quality. This series is suitable for applications with higher sound requirements such as night clubs, multi-function rooms, conference rooms, medium or large-scaled performance stages and more.

Key features:
  • The main frame adopts EIA standard ½ U metals.
  • The receiver is equipped with an LCD display and shows working channel/frequency, RF/AF, transmitter battery level, etc.
  • Super wide frequency range of 554MHz~936 MHz, intelligent antenna diversity and automatic connection.
  • PLL (phase lock loop frequency control) design can effectively block noise and radio frequency interference in the working environment.
  • The receiver has bandwidth of 32MHz, and you are allowed to use maximum of 10 sets of mic systems within the range of 32MHz.
  • The transmitter has bandwidth of 134MHz which allows simpler adjustment.
  • The capsule of the handheld microphone is detachable; you can choose either dynamic or condenser capsule, or even using global well-known brand microphone capsule.
  • Precise low-consumption circuit design; uses two alkaline batteries but has twice the battery life as common mics.
  • UR-223S system can cooperate with UH-222 handheld microphone and UH-222 bodypack transmitter.
UR-223S System
Carrier Frequency Range 554MHz~936 MHz
Frequency Reliability ±0.005％
Oscillation PLL synthesized
Max. Deviation ±45KHz
Sensitivity S/N>60dB @5dBμV input & deviation of 25kHz
Overall S/N >105dB
Overall T.H.D. < 0.7％@1kHz
Frequency Response 80Hz-18KHz ±3dB
Companding Typical Relacart audio companding technology
Working Distance Typical 80m (in open space)
Working Temperature -10°C～40°C

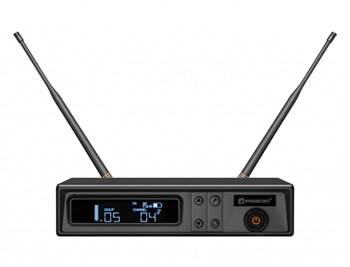

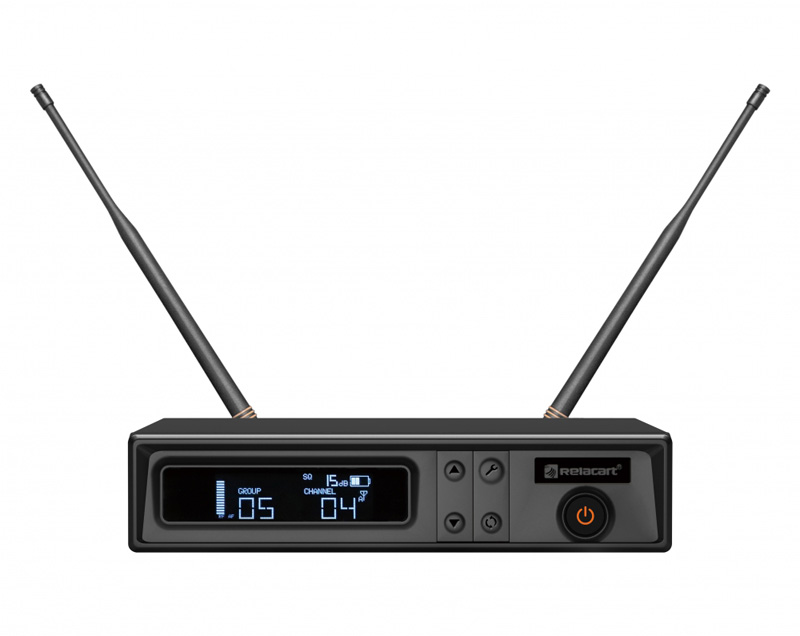

UR-223S Receiver
UR-223S Receiver

Main Frame Size:½ U EIA standard
Bandwidth:32 MHz
Power Supply:DC 12V/1A

Main Frame Size ½ U EIA standard
Receiving Channel Single Channel
Receiving Method Single channel, true diversity
Bandwidth 32 MHz
Output Socket XLR balance type or φ6.3mm unbalanced socket
Antenna Mounting BNC connector
Power Supply DC 12V/1A
Dimension(mm) 206(L) x206(W) x43(H)
Weight Approximately 1.0kg (w/o battery)

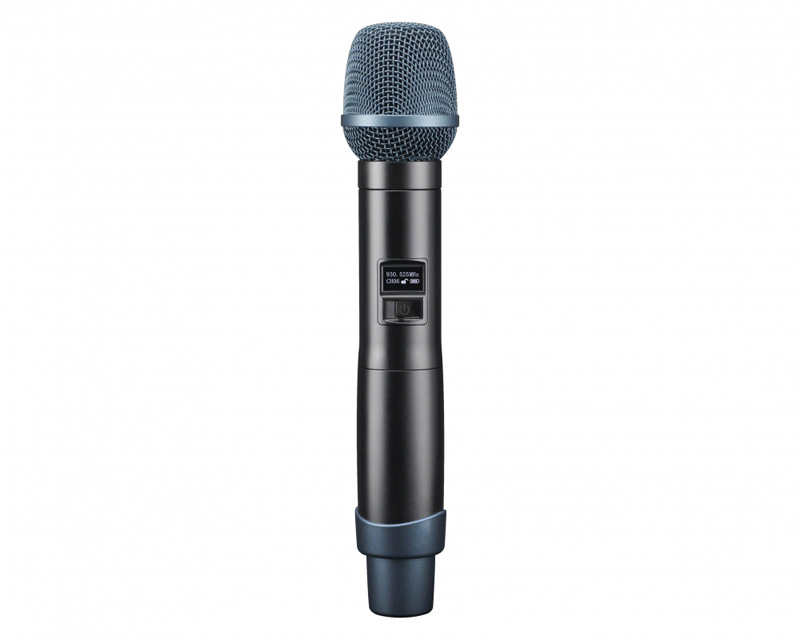

UH-222 Handheld Microphone
UH-222 Handheld Microphone

Carrier Frequency Range : 554MHz~936 MHz
Oscillation : PLL synthesized
Harmonic Radiation: < 45dBm

Carrier Frequency Range 554MHz~936 MHz
Oscillation PLL synthesized
Harmonic Radiation < 45dBm
Bandwidth Band: HF 139MHz (797 MHz~936 MHZ)

Band: AD 134MHz (662 MHz~796 MHz）

Band: EJ 97MHz (554MHz~651 MHz）
Max. Deviation ±45KHz
Capsule Dynamic/condenser cardioid
RF Output Power 10mW/40mW
Battery AAx2
Current Consumption 110mA (Typical)
Battery Life Approximately 11 hours
Dimension(mm) 52(φ)x255(L)
Weight Approximately 235g (w/o battery)

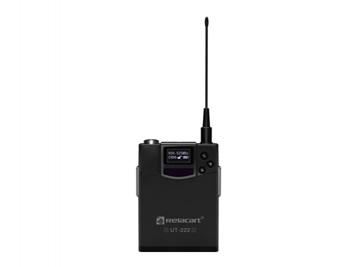

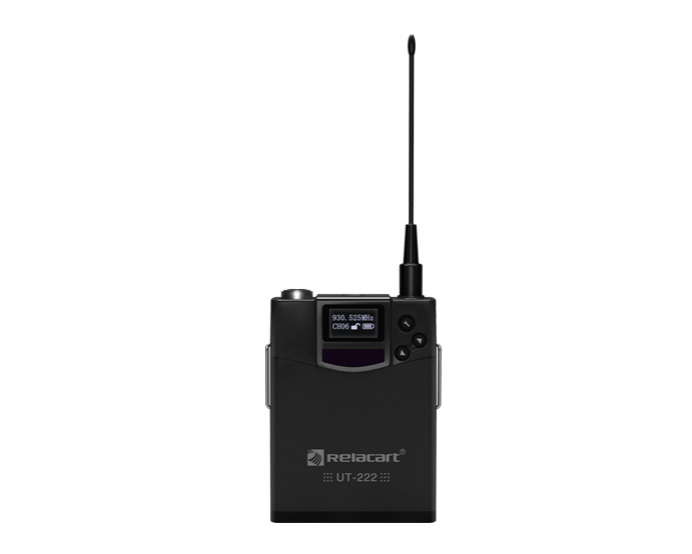

UT-222 Bodypack Transmitter
UT-222 Bodypack Transmitter

Carrier Frequency Range : 554MHz~936 MHz
Oscillation : PLL synthesized
Harmonic Radiation : < 45dBm

Carrier Frequency Range 554MHz~936 MHz
Oscillation PLL synthesized
Harmonic Radiation < 45dBm
Bandwidth Band: HF 139MHz (797 MHz~936 MHZ) Band: AD 134MHz (662 MHz~796 MHz） Band: EJ 97MHz (554MHz~651 MHz）
Max. Deviation ±45KHz
Input Connector 4-pin mini XLR connector
RF Output Power 10mW/40mW
Battery Life AAx2
Current Consumption 110mA (Typical)
Battery Life Approximately 11 hours
Dimension (mm) 84(H)x66(W)x23(D)
Weight Approximately 155g (w/o battery)
