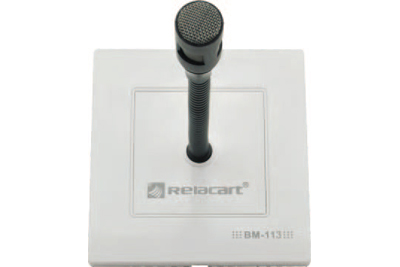

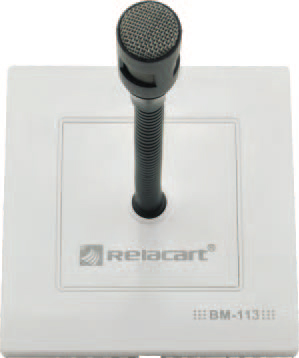

BM-113 Overhead condenser microphone

Key Features:

Anti-Interference

• Excellent RF shielding effect, effectively avoiding RF interference.
• BM-113 Cardioid polar pattern.

Clear Sound Quality

• High-quality speech reproduction.
• High gain-before-feedback.
• Flat and wide frequency response.

Convenient Installation

• Fixing or suspended hanging installation.
• Standard installation or embedded installation.

Hidden design

• BM-113 flexible gooseneck for optimal positioning.

This frequency response curve and polar pattern corresponds to a typical production sample for this microphone.（frequency response measurement error: ±2.5dB）

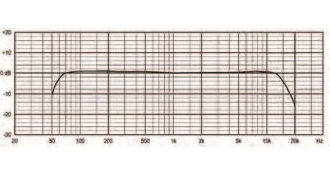

BM-113 Frequency Response 0dB=18 mV/Pa

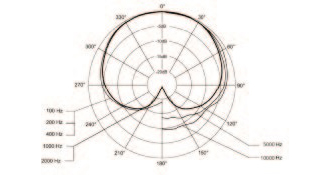

BM-113 Polar Pattern

• Capsule Type: Condenser cardioid polar pattern
• High Pass filter: 100Hz, 18dB/octave
• Frequency Response: 35Hz-18 kHz
• Sensitivity: -32dB, 1V@1Pa
• Output Impedance: 200Ω
• Max. Input Sound Level: 130dB, 1KHz@1％T.H.D.
• Dynamic Range (typical): 110dB, 1 kHz at highest sound level
• S/N: >68dB，1KHz@1Pa
• Phantom Supply: DC12-52V
• Current Consumption: 8mA (BM-112 Typical)
• Output Connector: 3P fast connector
• Dimension (mm): 90(L) ×86(W) ×153(H)
• Weight: 95g
• Color: White
