MIXX12 Dante sound mixer consoles

MIXX12 Dante sound mixer consoles
MIXX12 Dante sound mixer consoles

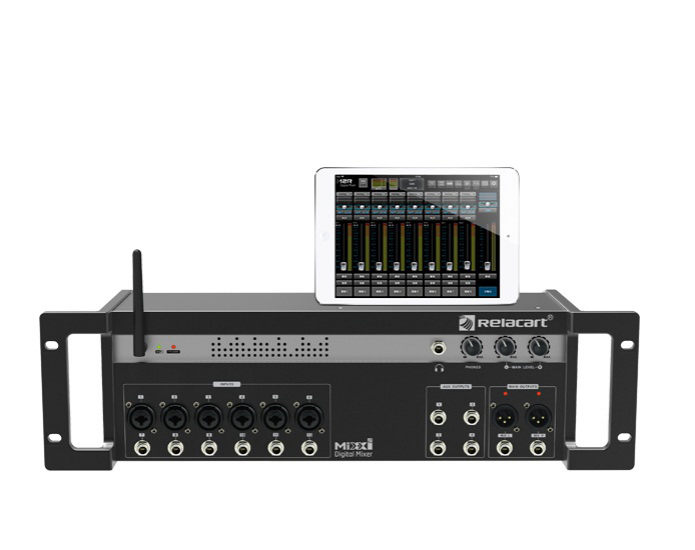

The MIXX12 is a rack mount digital mixer that operates through tablet computer application control. As long as there is a WiFi connection, it supports iOS, Android and Windows system control. MIXX12 also supports Dante input and output due to the built in Dante card. It features 12 channels for a broadcast quality microphone amplifier and 6 outputs: 2 main outputs and 4 auxiliary outputs.

It features a high performance 40 bit floating-point digital signal processor and 24 bit AD/DA converter. Built-in effects processor, compressor and limiter, gate plug-ins, parametric equalizer and more give the MIXX12 a perfect sound quality and sound effects, making it popular for weddings, performances, online broadcasting, clubs, radio broadcasting and more.

Key Features:

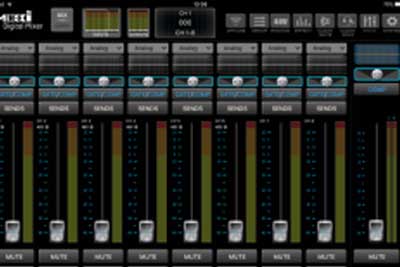

  • The tablet-controlled mixer supports iOS, Android and Windows operation systems using a WiFi connection, with a maximum of 10 mixers activated at any one time.
  • A simple and fashionably designed control panel replaces complicated control systems on traditional mixers.
  • 12 analog inputs (including 4 Dante inputs) and 6 analog outputs (including 4 Dante outputs)
  • Input connected with a 4-band parametric equalizer, high-pass filter, compressor/limiter and noise-gate.
  • Output connected with 31-band graphic equalizer, compressor at the noise-gate.
  • Built-in 10 different scene effects.
  • Mute function and equalization function.
  • Snapshot function for better live performance, and smart lock function.
Technical Parameters:
  • Sampling Rate: 24bit, 48kHz
  • Frequency Response: 20 Hz to 20 kHz +/–1 dB
  • Latency: 1.5 ms
  • Distortion (T.H.D.)<0.005%
  • Noise-Mic Input to Main Output:
  • -72dBv single channel-max. fader (A weighted)
  • -90dBv single channel-min. fader (A weighted)
  • Input Crosstalk (Adjacent Channel) <–120 dB @1 kHz
  • S/N: 93 dB single channel- max. fader (A weighted)
  • Dynamic Range: 110 dB single channel- max. fader (A weighted)
  • CMRR (common-mode rejection ratio) >70 dB @1 kHz
  • Input Impedance: 3.3kΩ (XLR Balance); 30 kΩ (1/4″ plug)
  • Gain: 0 to 60 dB
  • Input Impedance: 600Ω(XLR Balance)
  • Max. Output Level: +21 dBu(XLR Balance)
  • Power Supply: AC 100-240V (60W)
  • Dimension (mm): 488 (L) x 132 (H) x 191 (D)
  • Weight: Approximately 4kg
