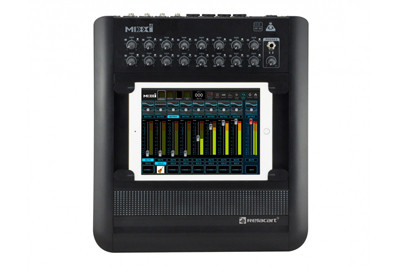

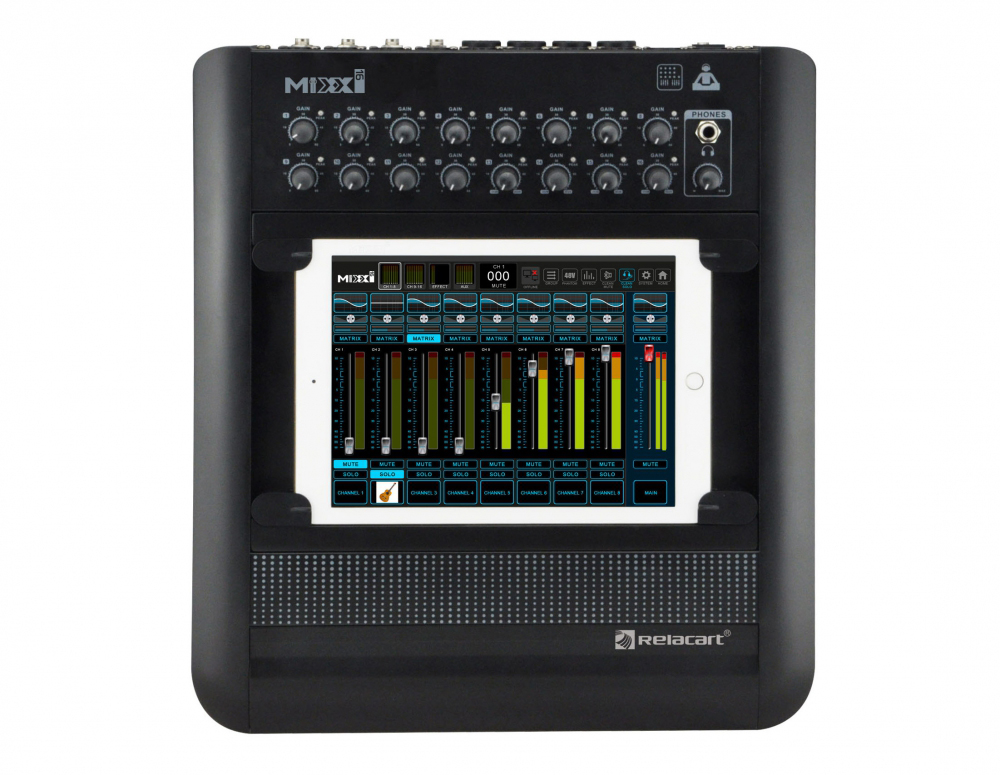

MIXX16 Digital sound mixer boards

MIXX16 Digital sound mixer boards

The MIXX16 is a 16-input and 8-output digital wireless control mixer, and is easily controlled using tablet applications that support all iOS and Windows 8 tablet systems.

The wireless control mode allows users to have no constraints regarding cord length, making it perfect for a 16 channel digital live mixer for large scale performance with just the use of an iPad control screen.

Key Features:
  • Convenient touch control and covers almost all major mixing features.
  • The mixer interface can be adjusted for each channel control including solo, mute, audio-visual, and fader. Users can see the full level meter.
  • The channel interface controls powerful DSP (digital signal processing) effects. The input channels include 4-band PEQ (parametric equalizer), high-pass filter, compressor, limiter and noise-gate. The output channels (main channels and auxiliary channels) include 31-band graphic equalizer, limiter, and an effects channel including reverb and delay.
  • Each channel can be edited with a specific name and icon for easy identification. Users can input their own photos from a picture library for use as an icon.
  • +48 V phantom power on each channel can be individually switched on/off.
    Super low noise and high dynamic design.
  • 6 auxiliary outputs can be used to monitor the mix.
  • Shared global reverb and delay effects.
  • Seamless access, users can adjust the speakers at any allowed distance. Users can also go to the stage for direct adjustment of the respective monitoring. Players can also adjust their own monitoring on stage.
Technical Parameters:
  • Sampling Rate: 24 bit, 48kHz
  • Frequency Response: 20 Hz to 20 kHz +0/–1 dB
  • System Delay: 1.5 ms
  • Distortion (T.H.D.) <0.005%
  • Noise-Mic Input to Main Output:
  • -72dBv Single channel-max. fader (A weighted)
  • -90dBv Single channel-min. fader (A weighted)
  • Input Crosstalk (adjacent channel) <–120 dB @1 kHz
  • S/N: 93dB Single channel-max. fader (A weighted)
  • Dynamic Range: 110 dB Single channel-max. fader (A weighted)
  • CMRR (common-mode rejection ratio) >70 dB @1 kHz
  • Input Impedance: 3.3kΩ (XLR Balance); 30 kΩ (1/4″ plug)
  • Gain: 0 to 60 dB (XLR）;–20 to 40 dB (1/4″ plug)
  • Output Impedance: 600Ω (XLR Balance）
  • Max. Output Level: +21 dBu (XLR Balance）
  • Power Supply: DC 12V-15V (3.5A)
  • Dimension (mm): 359 (L) x 85.5 (H) x 411 (D)
  • Weight: Approximately 4.2kg
