AMC-20 Microphone mixer control center

The AMC-20microphone mixer control center is able to connect with multiple WAM-432 wireless automatic audio mixers as well as achieve centralized control.

Key Features:

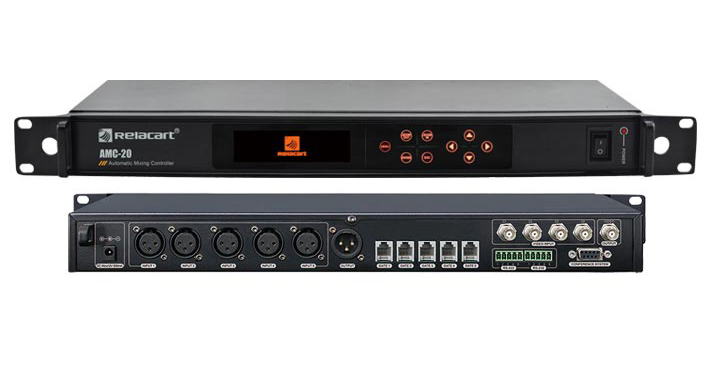

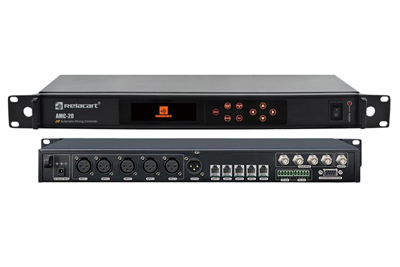

• All-metal enclosure using 1U EIA standard aluminum panels.

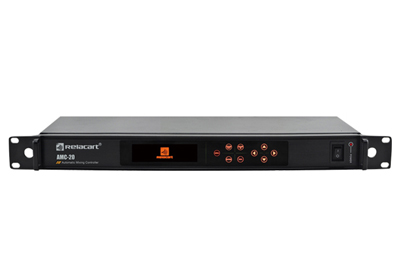

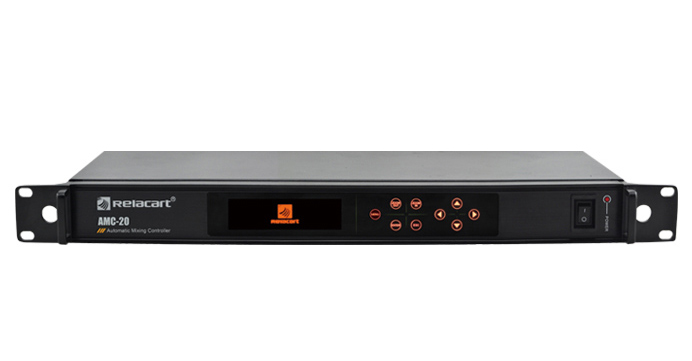

• Front panel: Equipped with 256x64 OLED display and touchscreen, and a camera control button.

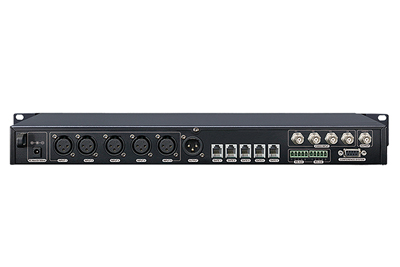

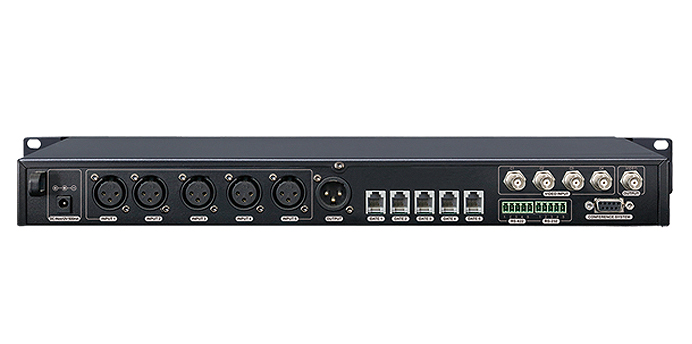

• Back panel: DC-12V power plug, 5 balanced mixer input and 1 balanced mixer output. 5 RJ11 data connectors, 4 HD video input and 1 HD video output, 2 camera plugs (RS-232, RS-422) and an external RS-232 connector.
• The mixer control center is composed of data control, mixer control, camera connection and other components. The full system is capable of simultaneously supporting 20 mixers and 4 HD camera activation.

Technical Parameters:

• Power Supply: DC 12 V
• Current: 0.23A
• Frequency Response: 20 Hz to 20 kHz +0/–1dB
• Distortion (T.H.D.) ＜0.03%（f=1 kHz）
• S/N: ＞98 dB（THD＜1%，f=1 kHz）
• Dynamic Range: 98dB
• Video Input: BNC female plug
• Video Output: BNC female plug
• Video Connector Impedance: 75Ω
• RS-232 connector: 5P quick connection
• RS-422connector: 5P quick connection
• RS-232connector: 9 core female socket
• Data connector: RJ11
• Audio Output: XLR female plug
• Audi Input: XLR male plug
• Display Screen: OLED touchscreen
• Dimension (mm): 410(W) x43(H) x 206(D)
