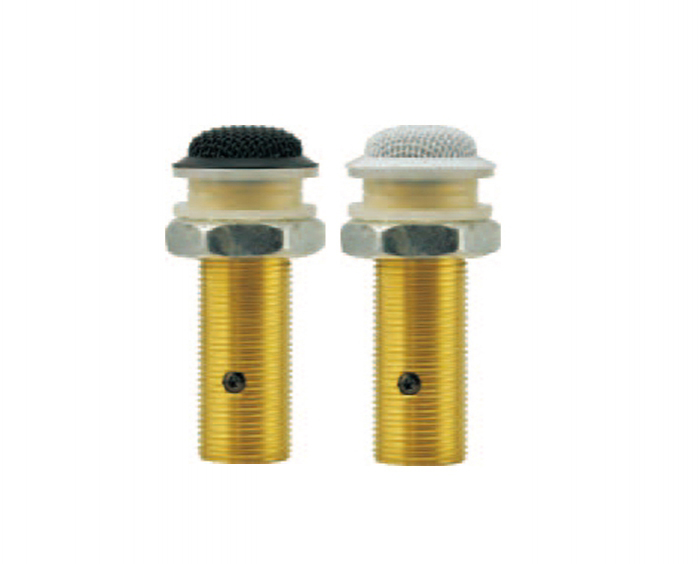

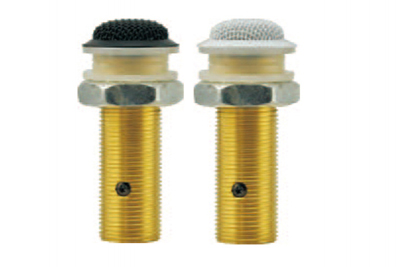

BM-110 Flush Mount Boundary Microphone

BM-110 Flush Mount Boundary Microphone
BM-110 Flush Mount Boundary Microphone
BM-110 Flush Mount Boundary Microphone

The BM series condenser boundary microphone is designed for flush mounting on desktops or ceilings. Applicable for to tele-video conferencing, recording or amplification of round table discussions, these microphones need to be as unobtrusive as possible.

The microphones have an excellent RF shielding effect, which makes the microphones absolutely insensitive to interference from wireless communication devices such as mobile phones. The BM-110 features a half-spherical polar pattern, making it ideal for large rooms.

The microphone has an exceptionally stable performance due to its extreme sensitivity and long sound pick up distance.

BM-110 Wired Boundary Microphone Key Features:

Anti-Interference

  • Excellent RF shielding effect, effectively avoiding RF interference.
  • High gain-before-feedback

Hidden Installation

  • Applicable for attaching to desktops or suspended ceiling installation

Clear Sound Quality

  • Cardioid polar pattern, high-quality speech reproduction.
  • Low-impedance balance audio output, the sound is smooth and clear.
  • Equipped with auto-gain audio processing circuit, effectively avoiding feedback.

Super Strong Directivity

  • Cardioid polar pattern, increase gain-before-feedback.
  • Decrease the environment noise and feedback, guarantee the vocal clarity.

Delicate Workmanship

  • Heavy die-case, stable and durable alloy shell and microphone.
  • The button is equipped with elastic bearing rings; minimize the coupling of surface vibration to the surface.

Convenient Installation

  • Accessories: elastic bearing rings
  • Installation:
    The installation hole (with elastic bearing ring) Ø24mm (15/16")
    The installation hole (without elastic bearing ring) Ø20mm (13/16")
    The installation hole (without elastic bearing ring) Ø20mm (13/16")
BM-110 Boundary Microphone Specification
  • Model: BM-110
  • Element: Fixed charging plate and permanent condenser capsule
  • Polar Pattern: Omni-directional polar pattern
  • Frequency Response: 80-18,000 Hz
  • Sensitivity: 18 mV/Pa = -34.4 dBV
  • Output Impedance: < 200 Ω
  • Max. Input Sound Level: 106 dB [SPL @ 1% THD]
  • S/N: 68dB, 1 kHz @ 1Pa
  • Noise Voltage: 6.0 μV [A]
  • Phantom Power Supply: DC12-52V
  • Current Consumption: 4mA (Typical)
  • Output Connector: Built-in 3-pin XLRM male plug
  • Weight: 95g (include nut and elastic bearing ring)
  • Dimension: Length: 74mm Width: 20mm (steel pipe) 39.5 mm (capsule ring)
Other Products
    1. WB-100 Cardioid Condenser Boundary Microphone
    1. TS series Desktop conference unit
    1. FM-100G Flush-mounted discussion unit

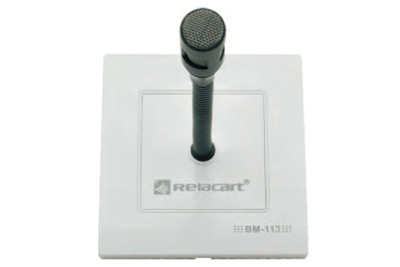

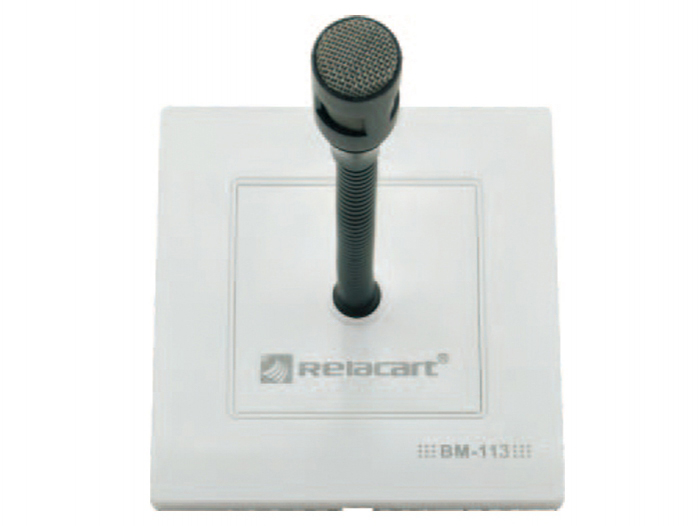

    1. BM-113 Overhead condenser microphone
