TSG series Desktop-Mounted Cardioid Condenser Gooseneck Microphone

TSG series Desktop-Mounted Cardioid Condenser Gooseneck Microphone


The TSG gooseneck microphone is a wide-range condenser cardioid microphone that picks up sound from just one direction. The built in audio transformer allows for a high quality sound reinforcement, making this microphone ideal for seminars, presentations, medium and large scale conferences, television broadcasting, professional sound recording, and other applications.

Key Features:

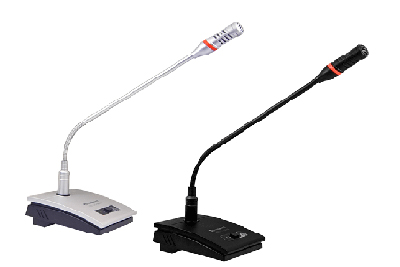

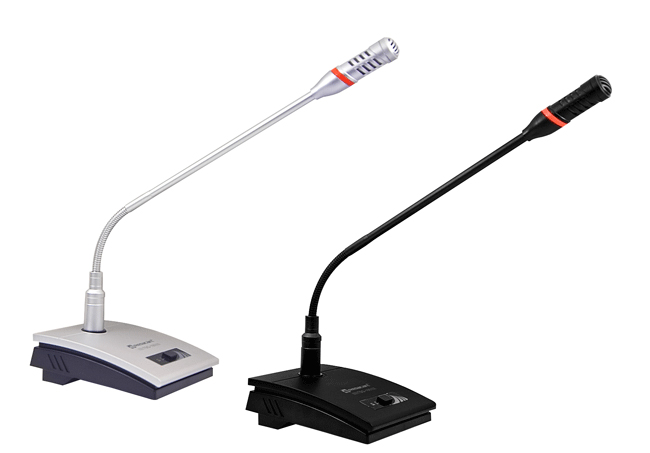

  • Flexibility: Small, compact, alternating adjustable-length gooseneck design allows for highly flexible positioning without memory (returns to the original state). The indicator light will turn red if the microphone is mute, and we have black or silver colors for customers to choose from.
  • The microphone base is made of a highly resistant alloy material for a longer service life and stability. The mute/on switch is also mounted on the base.
  • The 3-pin XLRM connector on the microphone is a low resistant balanced output, the voice signal is transmitted using #2 and #3 pin, and the #1 pin is the ground wire. The cables must be connected correctly with corresponding pins, 1-1, 2-2 and 3-3 to ensure the voice fidelity.

TSG-300Conference Gooseneck Microphone
  • Capsule: Condenser cardioid
  • Frequency Response: 80Hz-18 kHz
  • Sensitivity: -35dB, 1V at 1Pa
  • Output Impedance: 250Ω
  • Max. Sound Input: 133dB, 1KHz at 1%T.H.D.
  • Dynamic Range (Typical): 109dB, 1 kHz at SPL
  • S/N: ≥68dB,1KHz at 1Pa
  • Switch: Mute/On
  • Power Supply: DC11-52V phantom power supply, current consumption of 5mA (Typical)
  • Output Connector: Built-in 3-pin XLRM male plug
  • Microphone Tube Length: 340mm, 420mm (Default), 480mm
  • Weight: Approximately 1000g
  • Color: Black
TSG series Desktop-Mounted Cardioid Condenser Gooseneck Microphone

TSG-550 Conference Gooseneck Microphone
  • Capsule: Condenser cardioid
  • Frequency Response: 80Hz-18 kHz
  • Sensitivity: -32dB, 1V at 1Pa
  • Output Impedance: 250Ω
  • Max. Sound Input: 125dB, 1KHz at 1%T.H.D.
  • Dynamic Range (Typical): 105dB, 1 kHz at SPL
  • S/N: ≥65dB,1KHz at 1Pa
  • Switch: Mute/On
  • Power Supply: DC11-52V phantom power supply, current consumption of 5mA (Typical)
  • Output Connector: Built-in 3-pin XLRM male plug
  • Microphone Tube Length: 420mm (Default)
  • Weight: Approximately 996g
  • Color: Black
TSG series Desktop-Mounted Cardioid Condenser Gooseneck Microphone

TSG-600 Conference Gooseneck Microphone
  • Capsule: Condenser cardioid
  • Frequency Response: 45Hz-18 kHz
  • Sensitivity: -32dB, 1V at 1Pa
  • Output Impedance: 250Ω
  • Max. Sound Input: 125dB, 1KHz at 1%T.H.D.
  • Dynamic Range (Typical): 105dB, 1 kHz at SPL
  • S/N: ≥65dB,1KHz at 1Pa
  • Switch: Mute/On
  • Power Supply: DC11-52V phantom power supply, current consumption of 5mA (Typical)
  • Output Connector: Built-in 3-pin XLRM male plug
  • Microphone Tube Length: 340mm, 420mm (Default), 480mm
  • Weight: Approximately 1100g
  • Color: Black
TSG series Desktop-Mounted Cardioid Condenser Gooseneck Microphone
