Condenser microphones, Handheld Microphones

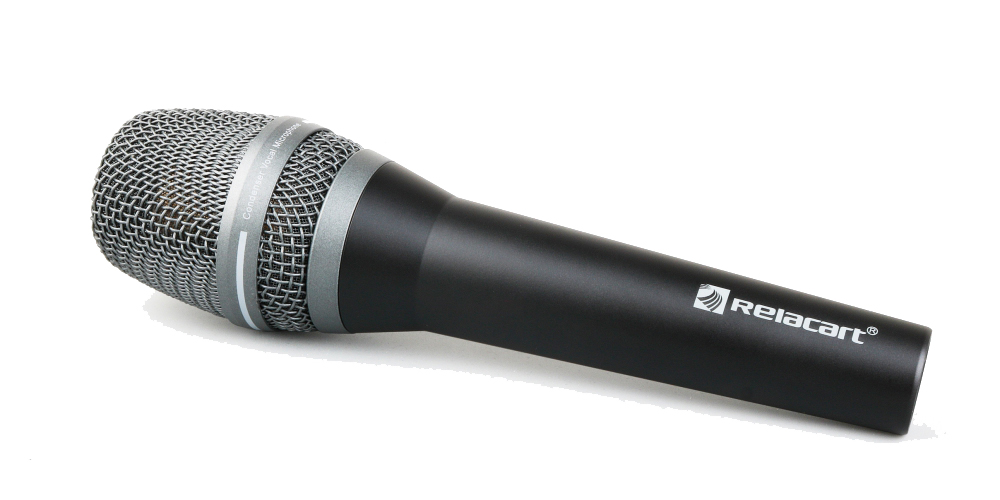

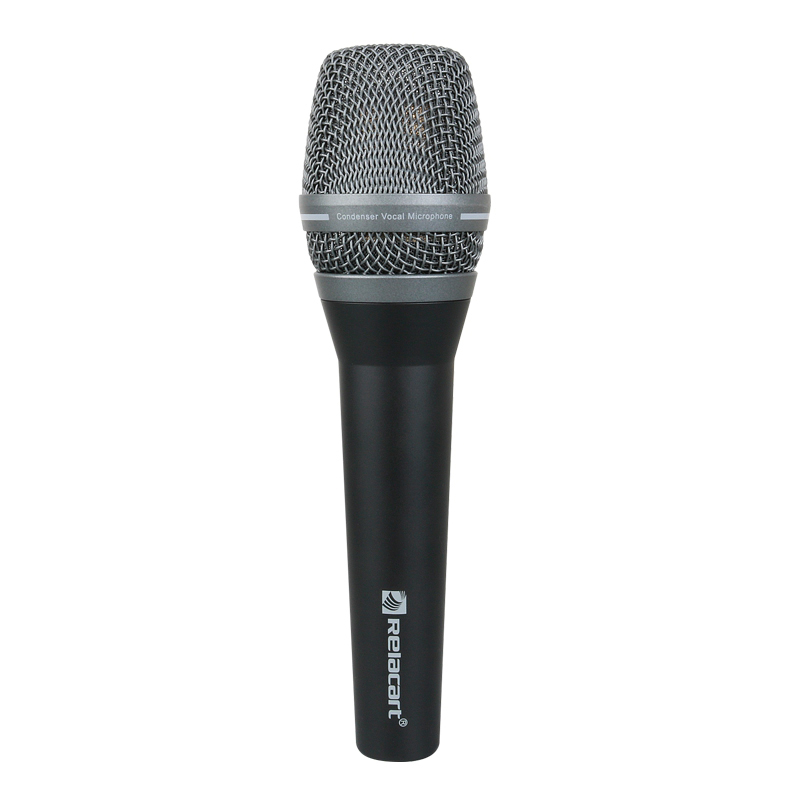

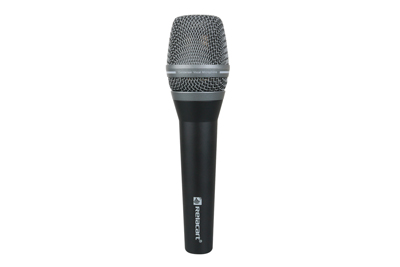

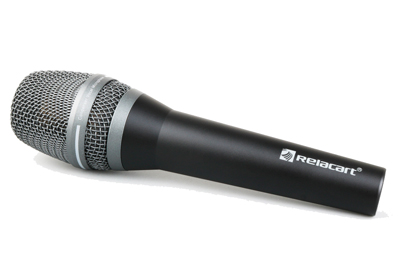

PM-100 Condenser microphones

Key Features:

Human sound tailored and works in conjunction with electroacoustic technology for the best voice reproduction. It is suitable for professional small or medium scale performances and studios.
The cardioid polar pattern reduces sound pickup from sides and rear.
Rugged, all-metal designed with noise isolation and long service life.
High-strength, antiskid, metal mesh enclosure provides extra protection.
Built-in high-pass filter circuit to reduce breathes pickups, as well as surrounding noises (such as car engines, air conditioner noises, echoes, mechanical vibration noises and more)
The PM-100 is used for professional voice recording, and is powered using an 11 to 52V phantom power supply, or using the built in phantom power supply in the mixing console, or using an individual Relacart P-48V1S single channel phantom power supply.

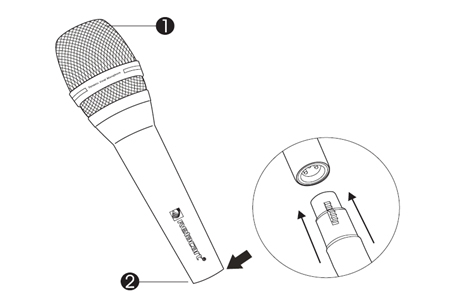

The 3-pin XLRM connector on the microphone is a low resistant balanced output, the voice signal is transmitted using #2 and #3 pin, the #1 pin is the ground wire.
The cables must be connected correctly with corresponding pins, 1-1, 2-2 and 3-3 to ensure the voice fidelity.
No high-temperature exposure, keep the microphone in an environment with temperatures lower than 43°C and low humidity.

Technical Parameters:
