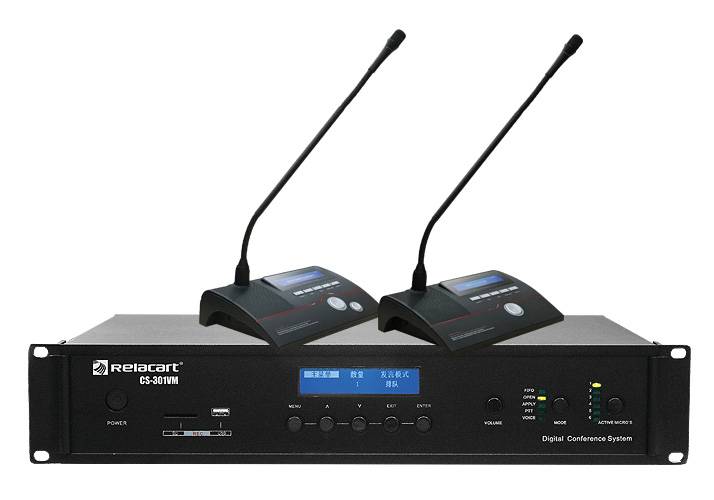

CS-301V Conference Voting Systems

CS-301V Conference Voting Systems


The CS-301V conference voting system adopts an RJ45 cable connection method to prevent signal interference and supports longer distance compared to traditional reticle connection methods. This conference voting system is the perfect combination of digital control technology and audio conference technology, with a video tracking system and conference sign-in, voting function (voting buttons on each microphone unit) high-performance microprocessor core design and excellent reliability.

This conference voting system supports USB flash drives, TCP/IP network connection, WIFI connection, RS232 connection and etc. This is a flexible system which can be used separate from a computer system, and is suitable for hotel, government offices, government department, and other types of multi-purpose conferences.

Key Features:
  • Each line could be connecting to 30 microphone units and whole system could connect to maximum of 150 microphone units.
  • Adopts RJ45 network connectors, divided into 5 main outputs and 5 back-up outputs.
  • Built in IC card reader, with IC card sign-in function, supports both IC card sign-in and key-press sign-in method.
  • With voting functions of approval, objection, abstention, and can perform a variety of topic voting activities.
  • Digital Conference Discussion System
  • Chairman Unit / Delegate Unit
  • High Definition Camera

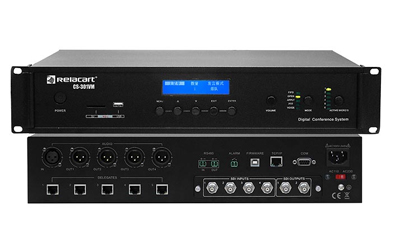

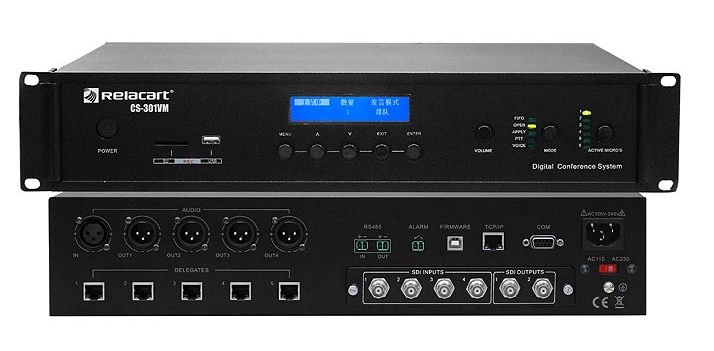

CS-301VM Digital Conference Discussion System
  • Frequency Response: 100Hz-12.5kHz
  • Power Supply: AC110、270V ±10%50Hz
  • Max. Power: 100W
  • S/N: 78dB(THD1% @ 1kHz)
  • Speaking Mode: FIFO, LIFO (last in first out), automatic mode, discussion mode, chairman mode
  • Unit Power: DC24V(powered by the central controller)
  • Connection plug: RJ45 (also named 8P8C (8 position 8 contact))
  • Dimension (mm): 480(W)x88(H)x270(D)
CS-301V Conference Voting Systems

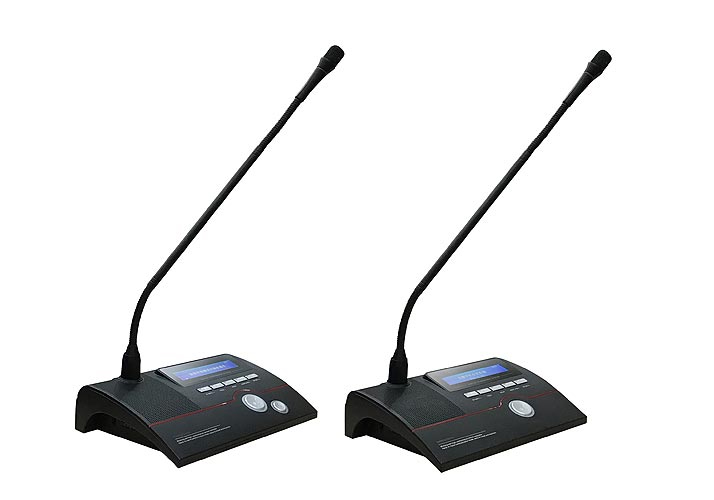

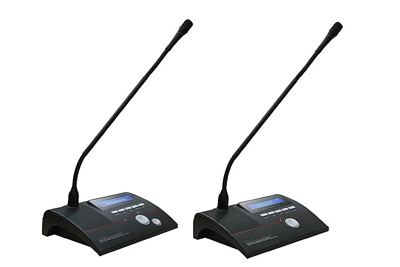

CS-301VC Chairman Unit / CS-301VD Delegate Unit
  • Capsule: Condenser cardioid
  • Sound Pick-up: Unidirectional
  • Frequency Response: 60Hz-16KHz
  • Sensitivity: -45±3dB@1kHz
  • Unit Power: DC24V (powered by the central controller)
  • Min. Output Impedance: 1kΩ
  • S/N: 68dB(A)
  • Output Connector: RJ45 crystal connector
  • Connecting Cables: 2m RJ45CAT5E cable
CS-301V Conference Voting Systems

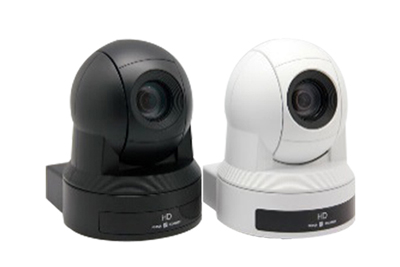

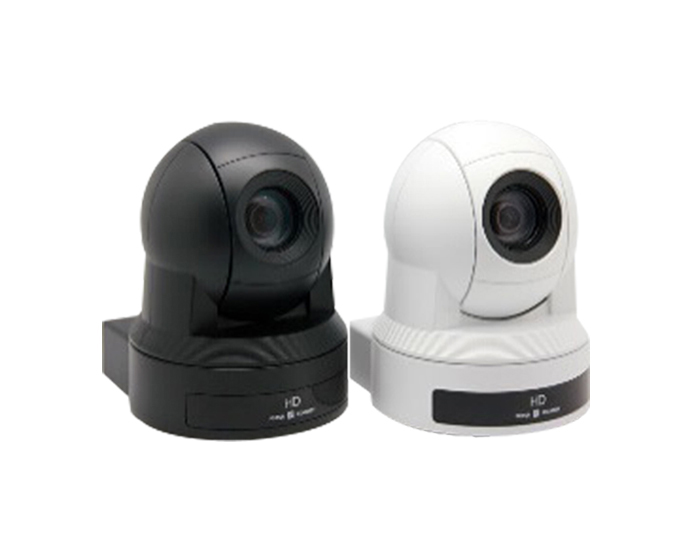

RC-809HD High Definition Camera
  • Effective Pixel: Approximately 4 million
  • Sensor: SONY 1/2.8inch Exmor CMOS
  • 240X Zoom Lens: 20X optical, 12X digital
  • Resolution: Full HD 1080P(1920×1080)
CS-301V Conference Voting Systems
